Multiple Frequency Ultra
Multiple Frequency Ultrasonic,has full functions, beautiful appearance and reliable performance. The instrument adopts large screen display, centralized control by central microcomputer, adjustable ultrasonic interval time, and power 1-99%. The sample temperature can be set, the frequency can be automatically tracked, and the fault can be automatically alarmed. In order to adapt to industrial production and standardized teaching, the instrument has added a multi-machine joint control function on the basis of maintaining the original function, performance and stability of ultrasonic waves. It is truly realized that multiple ultrasonics run under the same parameters. The control machine can be an industrial computer, a server, a notebook computer, or a desktop computer. It has flexible control and networking functions, and can also realize production statistics and economic accounting with the cooperation of special software. And it is equipped with the interface of continuous production management system, so that ultrasonic wave can be well integrated into your production and teaching.
Contact
Online Consult
- Description
- Specifications
- Paper
- Video
Multiple Frequency Ultrasonic,has full functions, beautiful appearance and reliable performance. The instrument adopts large screen display, centralized control by central microcomputer, adjustable ultrasonic interval time, and power 1-99%. The sample temperature can be set, the frequency can be automatically tracked, and the fault can be automatically alarmed. In order to adapt to industrial production and standardized teaching, the instrument has added a multi-machine joint control function on the basis of maintaining the original function, performance and stability of ultrasonic waves. It is truly realized that multiple ultrasonics run under the same parameters. The control machine can be an industrial computer, a server, a notebook computer, or a desktop computer. It has flexible control and networking functions, and can also realize production statistics and economic accounting with the cooperation of special software. And it is equipped with the interface of continuous production management system, so that ultrasonic wave can be well integrated into your production and teaching.

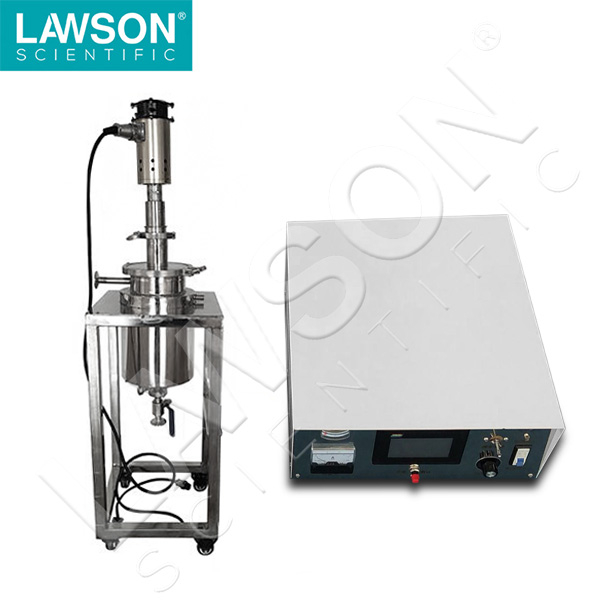

It adopts double-layer material cup design, with inlet and outlet and cooling liquid inlet and outlet, which can be used in conjunction with constant temperature tank. instrument use.
| Model | DH-LX2500W |
| Extraction method | Circulating flow ultrasonic extraction |
| Effective volume (L) | 1-100L (borosilicate glass or stainless steel) |
| Ultrasound | Condensed energy |
| Ultrasonic power (KW) | 500W-40KW adjustable |
| Ultrasonic Frequency | 20±1KHz (frequency automatic tracking) |
| Stirring method | Motor stirring |
| Control temperature (℃) | -20-100℃ (a matching cryogenic thermostat is required) |
| Standard ultrasonic horn | 20 or 22MM, optional 10, 15, 25, 28MM |
| Ultrasonic generator and transducer in 1:1 configuration | PLC control |
| Main control mode | PLC or MCU control (optional notebook) |
| How it works | 7 inch true color touch screen or computer |
| Failsafe | Yes |
| Temperature Protection | Yes |
| Transducer fully sealed | Optional |
| Applicable media | Volatile or non-volatile |
| Purpose | Pilot or production |
| Operating voltage | AC220V50Hz |
| Note: The red font is optional. |
